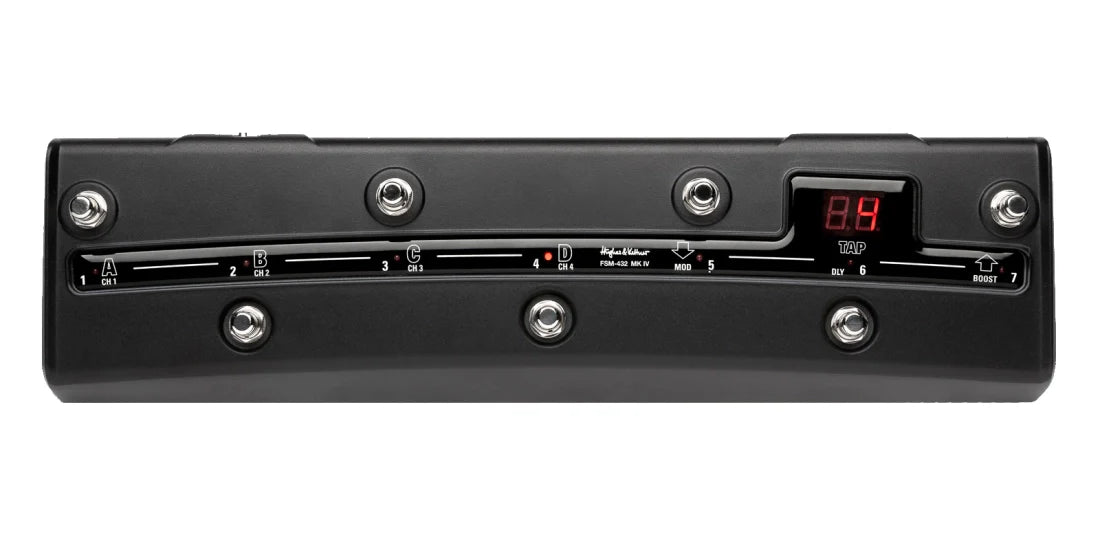

Hughes & Kettner FSM-432 MK IV Footswitch FSM432MK4
Take your guitar playing to the next level with the Hughes & Kettner FSM-432 MK IV Footswitch. This versatile MIDI board allows you to effortlessly switch channels, activate effects, and access your favorite sounds with ease.
Why You’ll Love It
- Switch channels and control effects independently
- Customize controller inputs for each preset
- Slim design fits perfectly on any pedalboard
- Update firmware easily via MIDI port
FAQ
Is the FSM-432 MK IV Footswitch compatible with other Hughes & Kettner amps?
Yes, it works with TubeMeister Deluxe 40, TubeMeister 36, Coreblade, and Switchblade.
Can I use expression pedals with this footswitch?
Yes, it features two 1/4" jack inputs for connecting expression pedals or footswitches.
How do I update the firmware on the footswitch?
You can update the firmware via the MIDI port for seamless upgrades.
The FSM-432 MK IV MIDI Board doesn't just serve to select presets. The stomp box mode allows you to switch channels directly, and to activate modulation effects, delay and boost independently, or you use the Direct 7-Mode for direct access to your 7 most wanted sounds. It also offers two 1/4" jack inputs to connect expression pedals or single footswitches. Both inputs are freely assignable to remote control any pot and switch (except Master Volume) of the GrandMeister and Black-Spirit 200 in real time.
FSM-432 MK IV is fully compatible with the MK III and also works as well with TubeMeister Deluxe 40, TubeMeister 36, Coreblade and Switchblade. The FSM 432 MK-IV comes with everything that made the earlier FSM-432 MKIII so popular, plus a host of new functions
Features
• Direct 7-Mode alongside tried-and-true Preset- and Stompbox-Modes
• Assign controller inputs individually to each preset in Preset-Mode
• Configure controller inputs in Stompbox-Mode, globally and independently of Preset Mode
• Copy sounds in Direct 7-Mode
• Use Tap Delay in Direct 7-Mode to set delay time at the controller input
• Update firmware via the MIDI port to keep your board up to speed
• Revamped slimmer housing with straight edges leaves a smaller footprint and is a better fit for legacy pedal boards
Specifications
MIDI In: 5-pin
MIDI Out: 7-pin (5-pin compatible)
Controller Inputs: 2 x 6,3mm (1/4") stereo jack
Power Supply: Phantom powered (50 mA, 23 Volts)
External Power Supply: AC or DC 9-15 Volts, 250 mA
Dimensions: 435 x 118 x 66 mm
Weight: 1.68 kg
