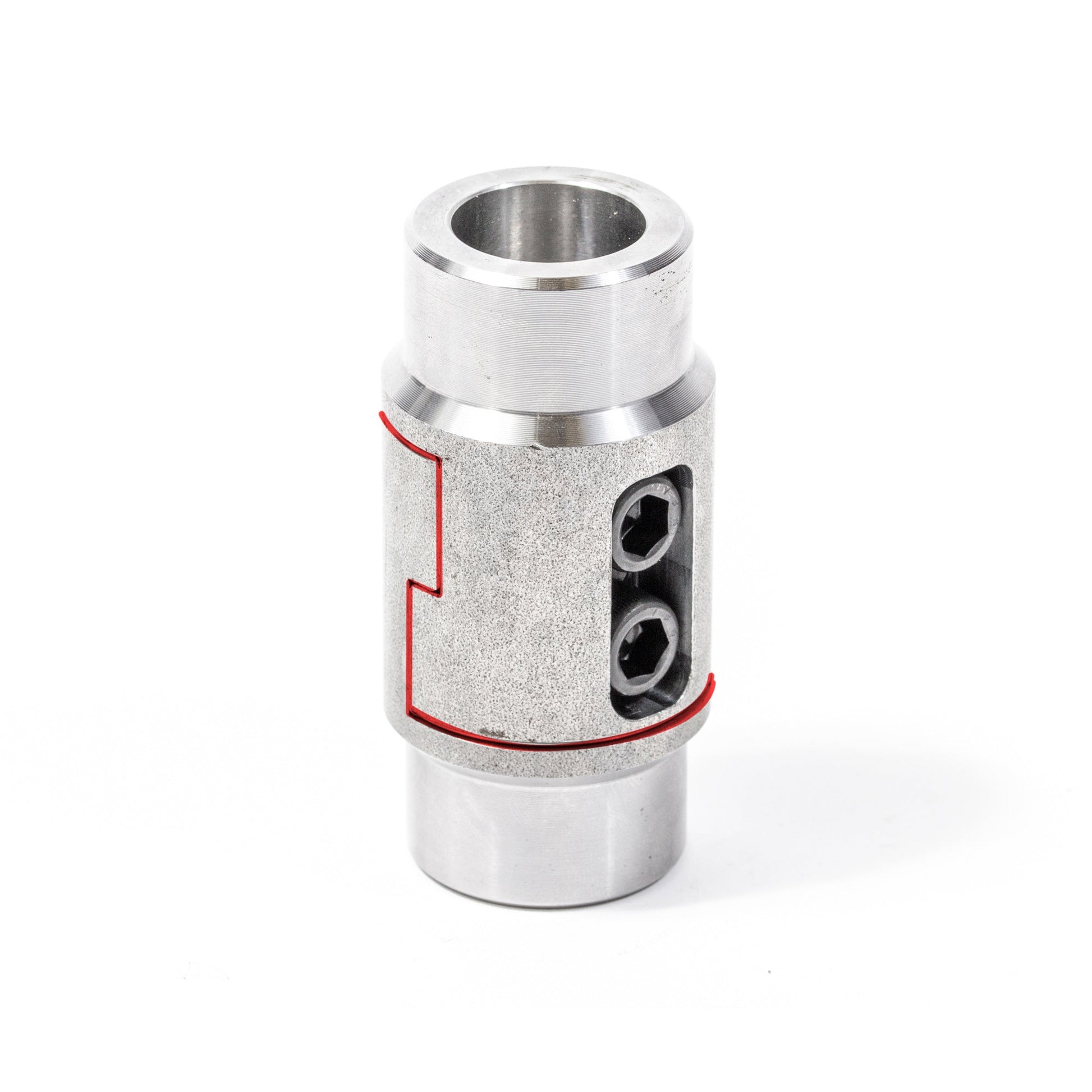

Interlocking ID Tube Clamp - Round
Upgrade your chassis with our innovative Interlocking ID Tube Clamp - Round. Designed to enhance stability and durability, this tube clamp from TMR Customs is a game-changer for your build.
Why You’ll Love It
- Dual loading bolts for hassle-free installation
- Locking feature with nylon lock nut for added security
- Large 45 degree chamfer for easy alignment
- Extra length for plug welding and additional strength
FAQ
What makes this tube clamp unique?
Our tube clamp features dual loading bolts and a locking feature for enhanced convenience and security.
Can I weld these tube clamps for added strength?
Yes, the extra length allows for plug welding to increase durability.
What sizes are available for this tube clamp?
Choose from a variety of options to match the size of your tubing for a perfect fit.

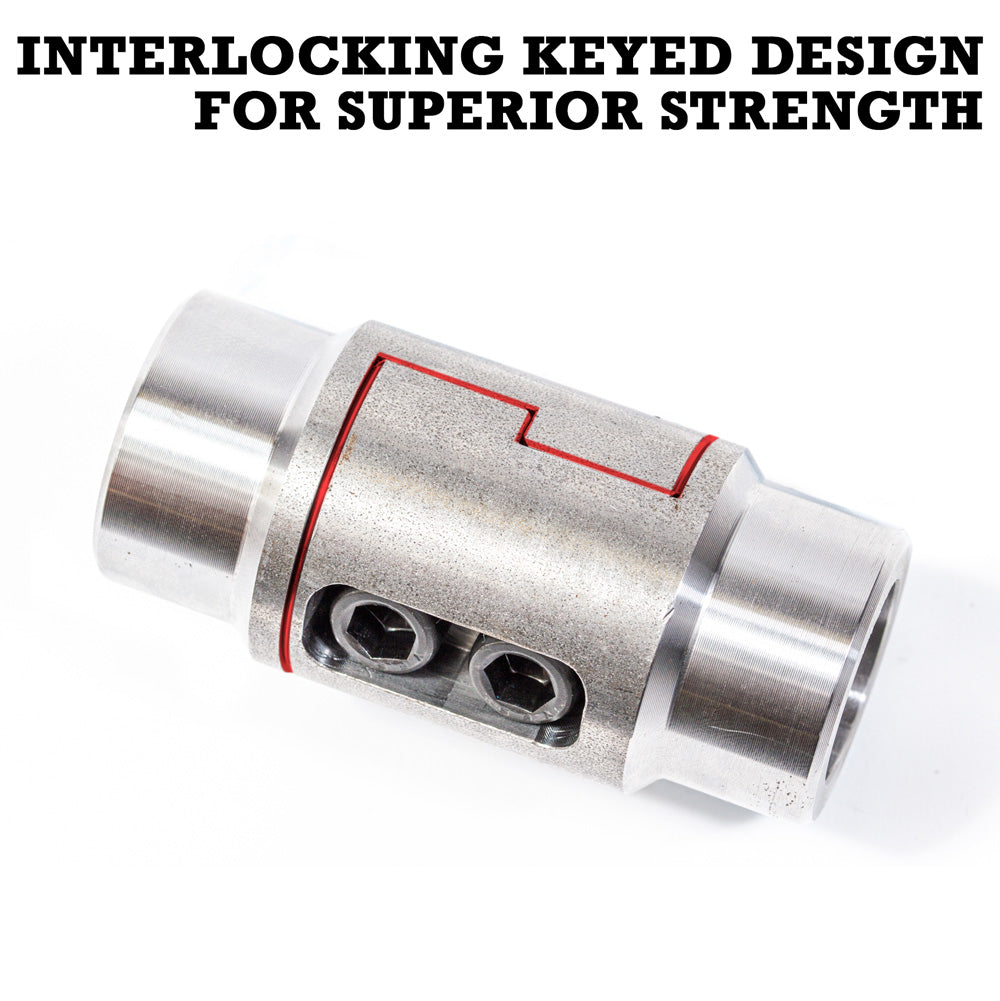

When we sat down to come up with a design for our interlocking inner diameter tube clamps/couplers, we thought we could greatly improve upon what already existed. We built a number of unique features into these that sets them apart! At TMR Customs we manufacture the world's best roll cage clamp!

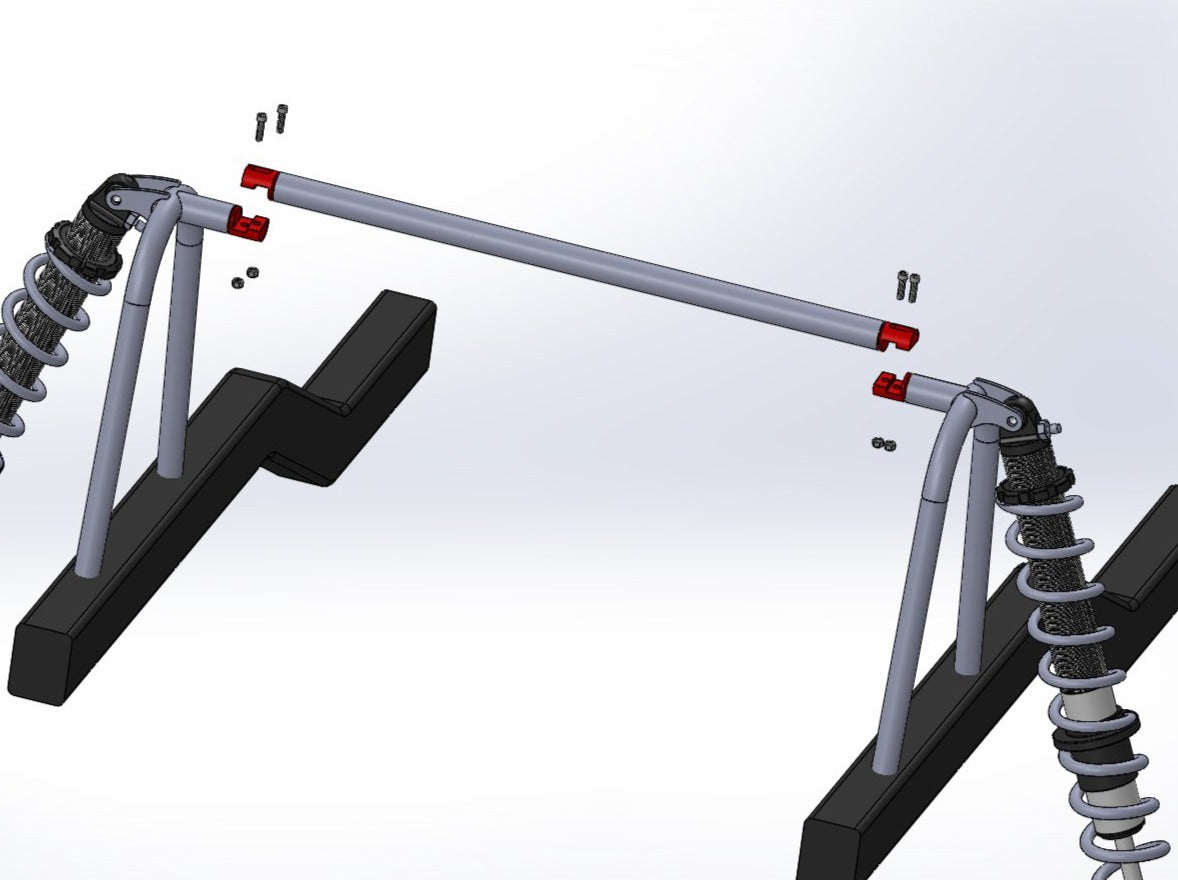

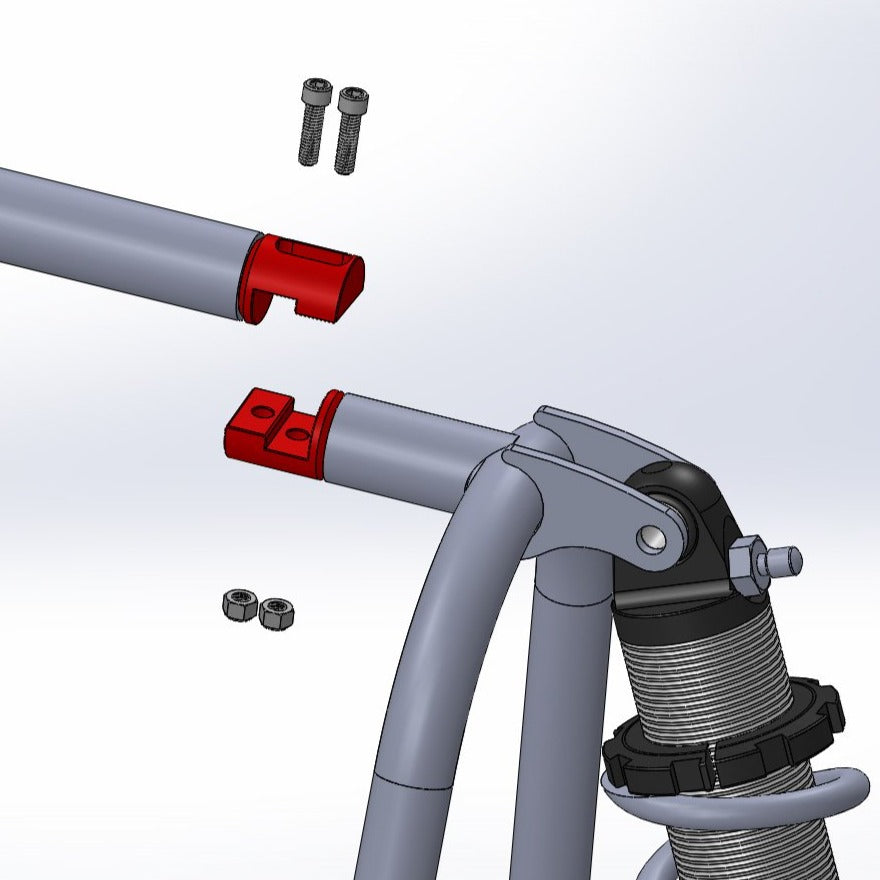

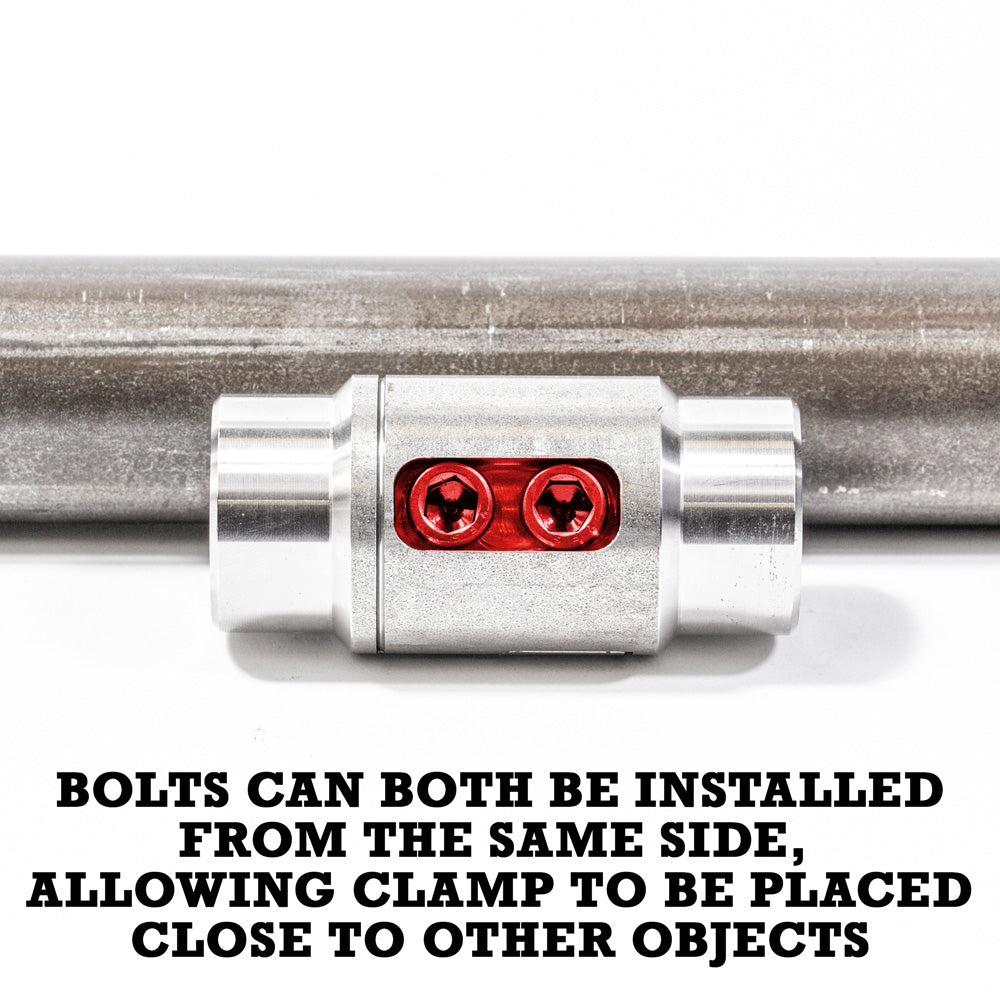

1: Both bolts can be loaded from the same direction! Gone are the days of threading in one fastener from the front side, and one fastener from the back side. Now you can mount our tube clamp extremely close to other components on your chassis without interference issues!

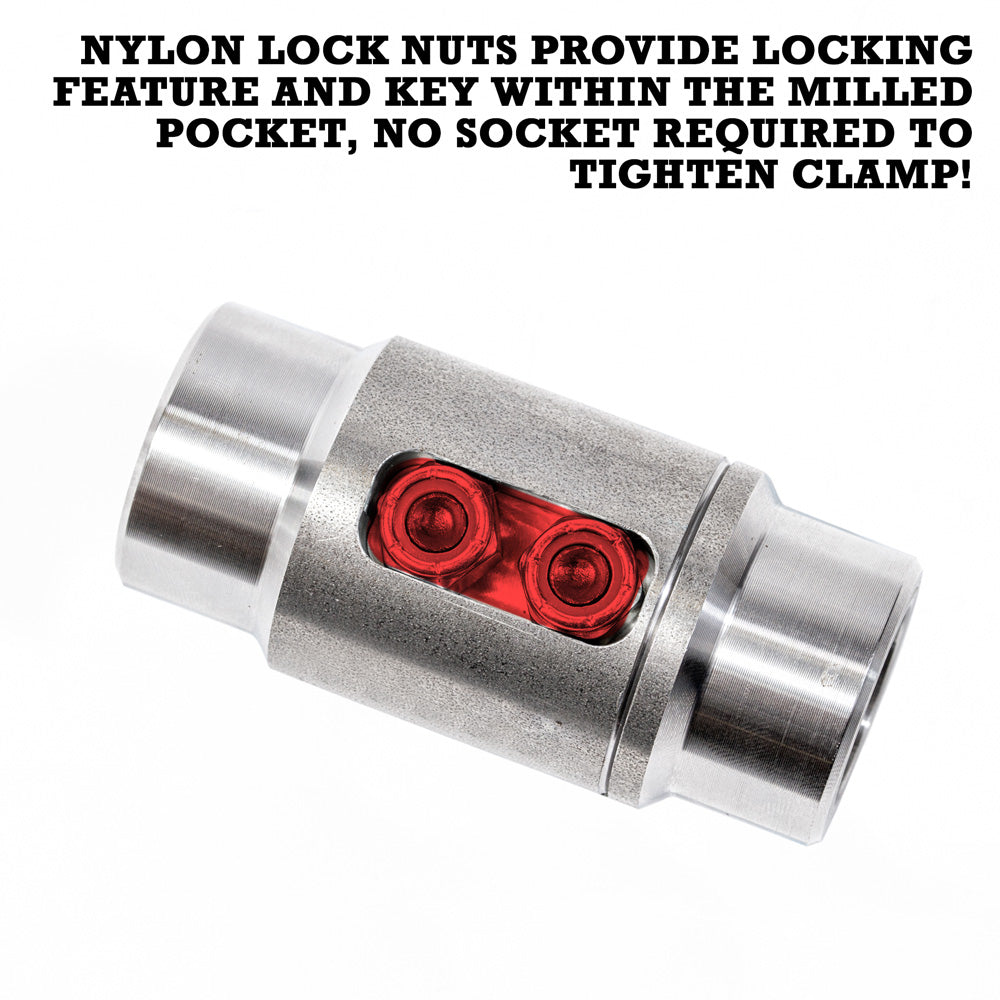

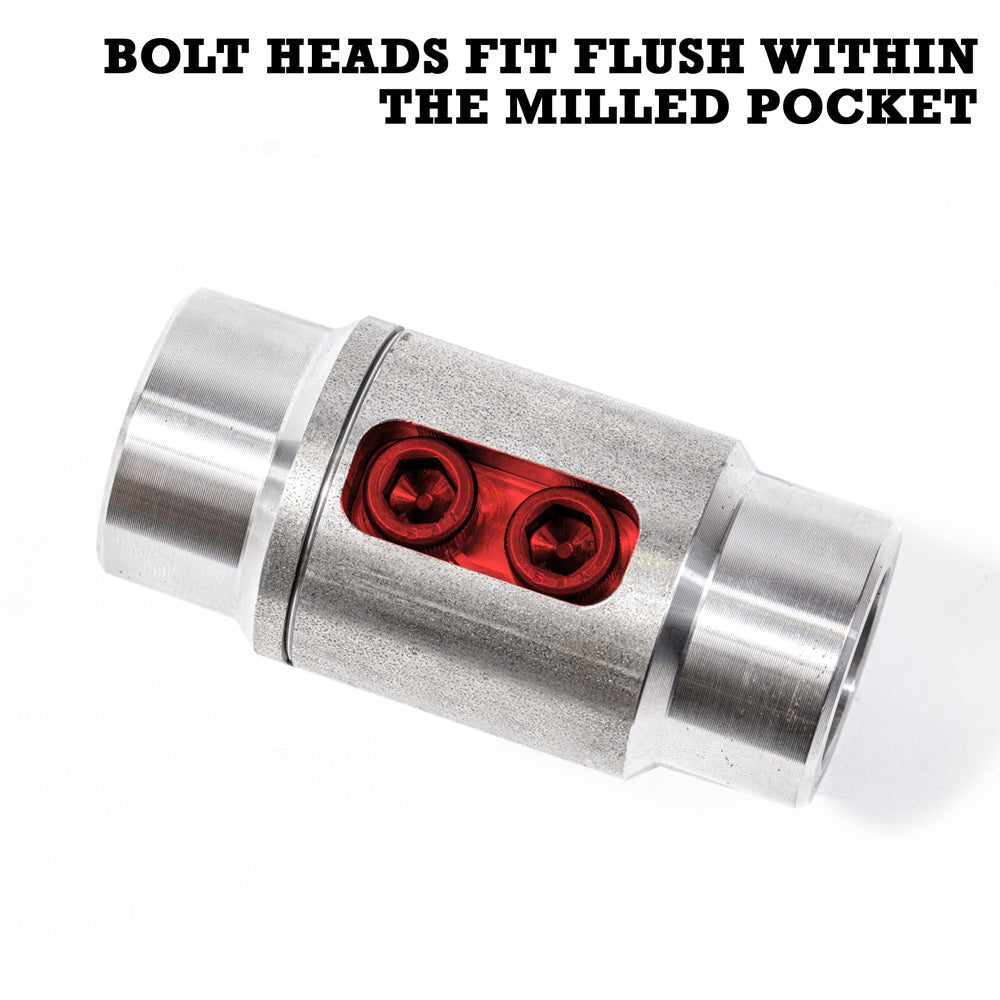

2: Locking feature - we use a nylon lock nut. No need to worry about stripping out the tapped holes in your clamps. The nylock nuts key into the machined pocket, eliminating the need to hold them with a wrench or socket when tightening.

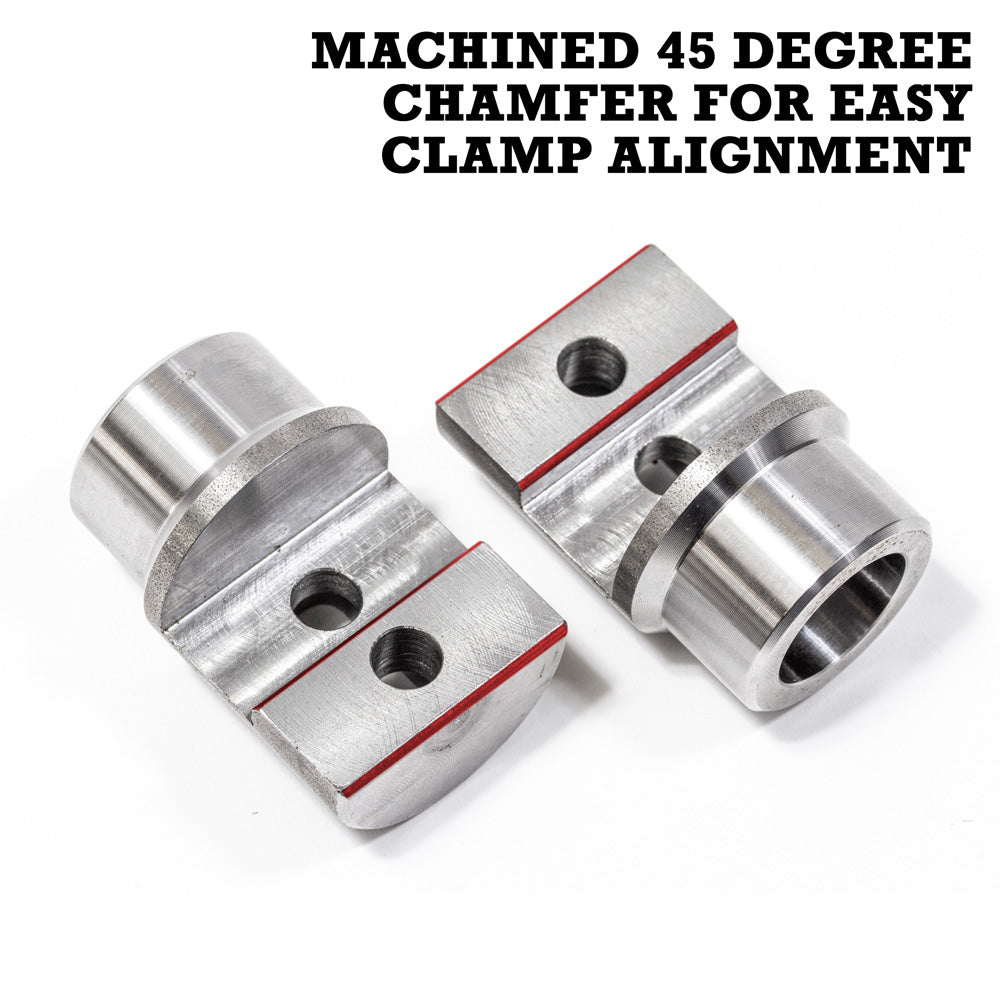

3: We machined a large 45 degree chamfer along the interlocking edges. This makes it much easier to align the clamps, especially after they have pulled from welding, or the tubes have slightly tweaked from a roll over or crash.

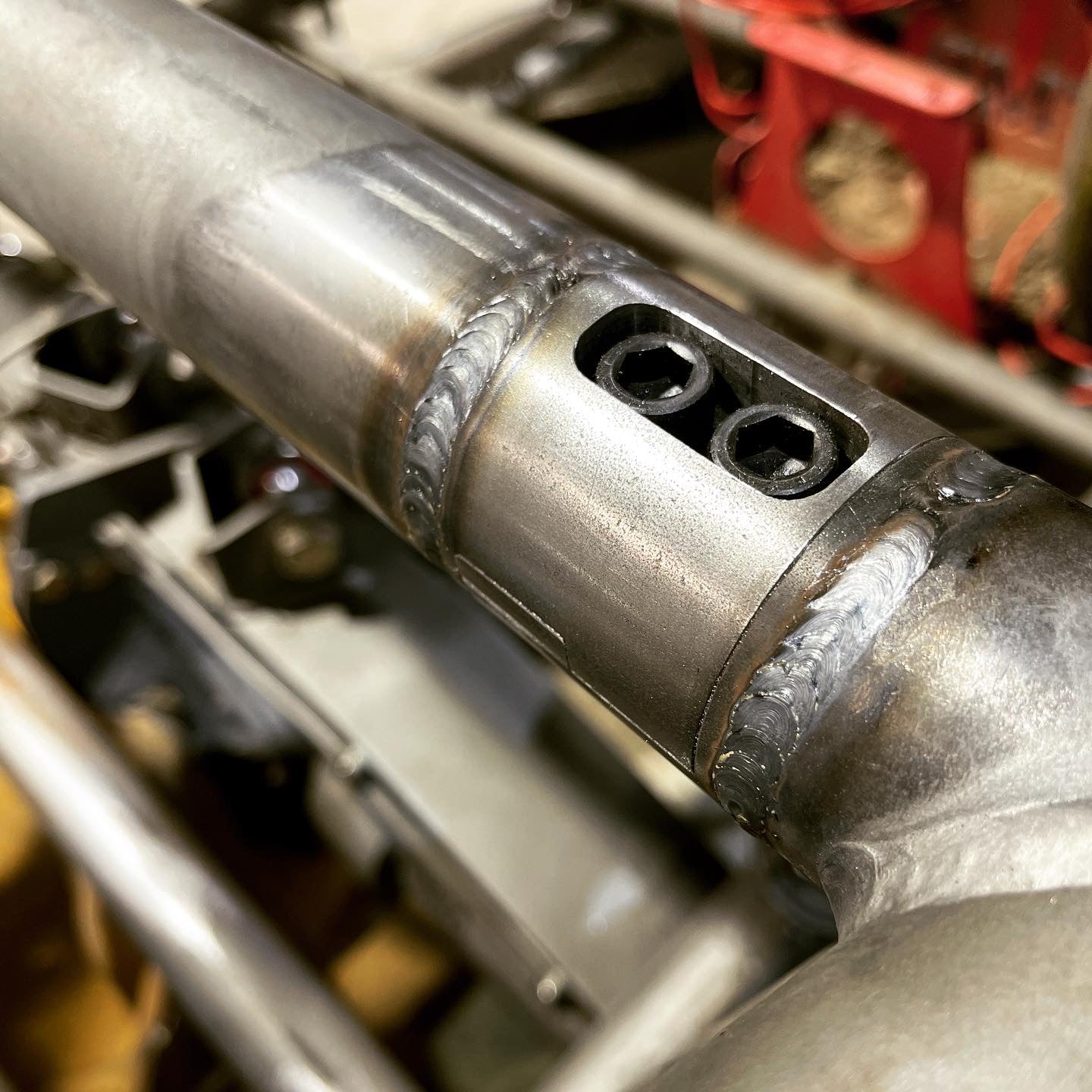

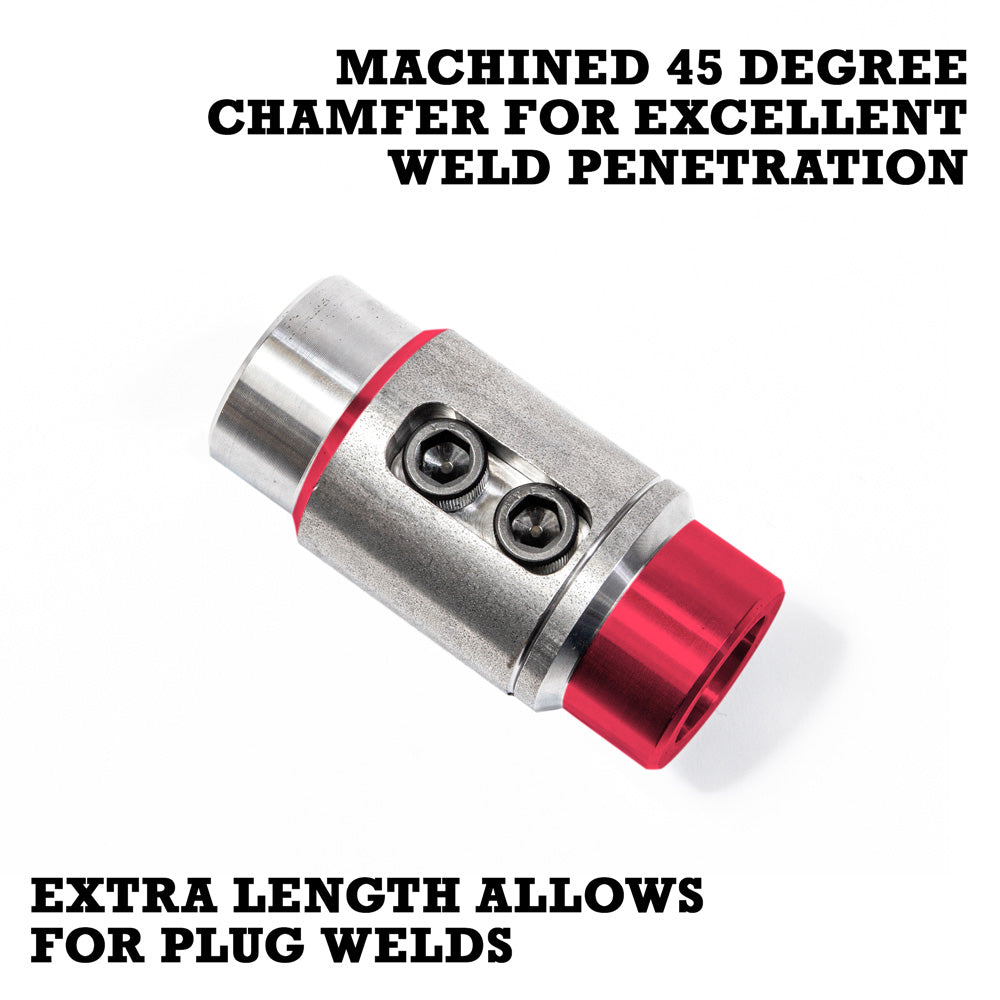

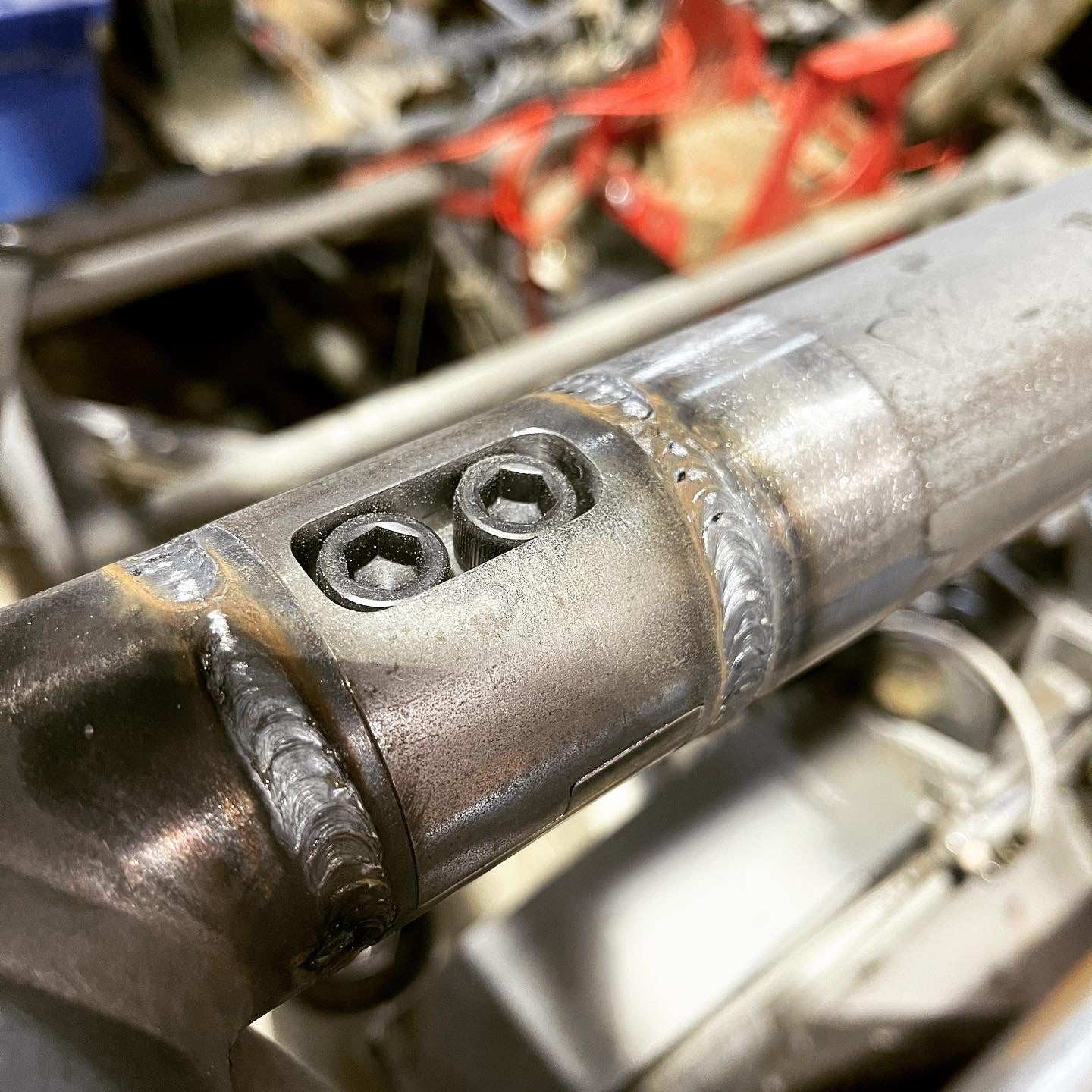

4: We left enough length on the small ID that is inserted into the tube that you can properly plug weld these for additional strength.

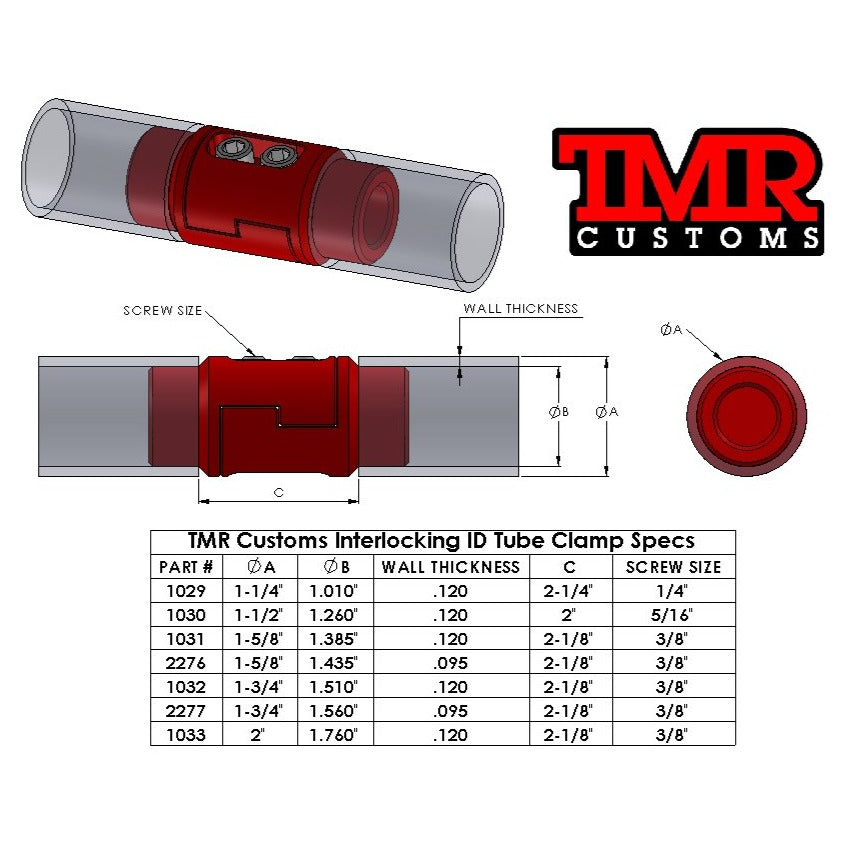

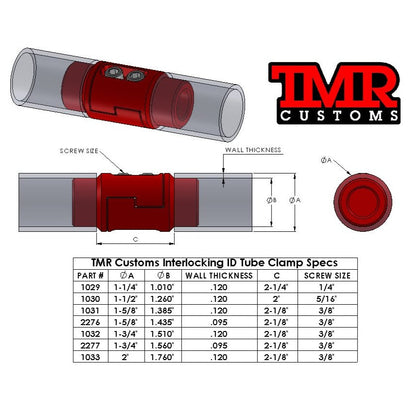

CHOOSE FROM THE OPTIONS BELOW TO MATCH THE SIZE OF YOUR TUBING!
