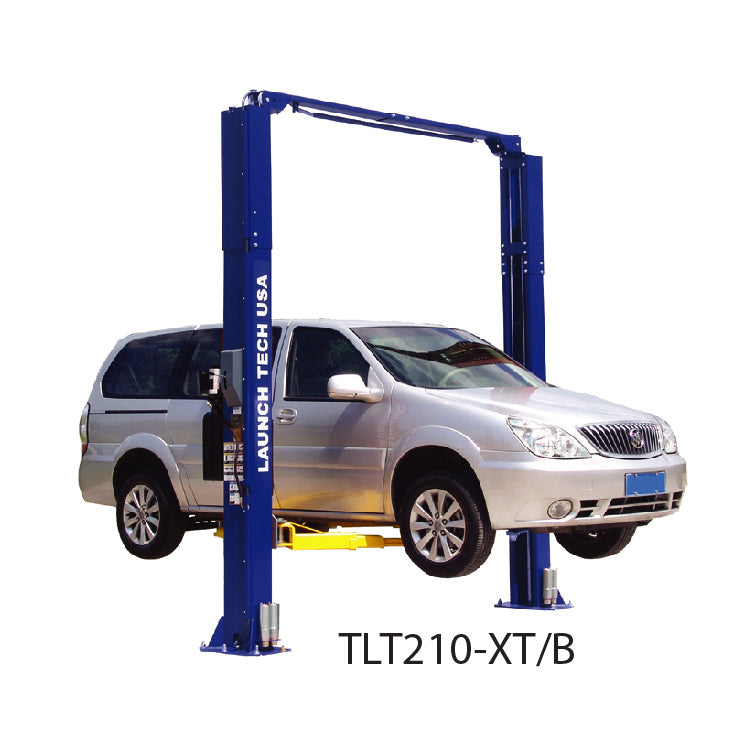

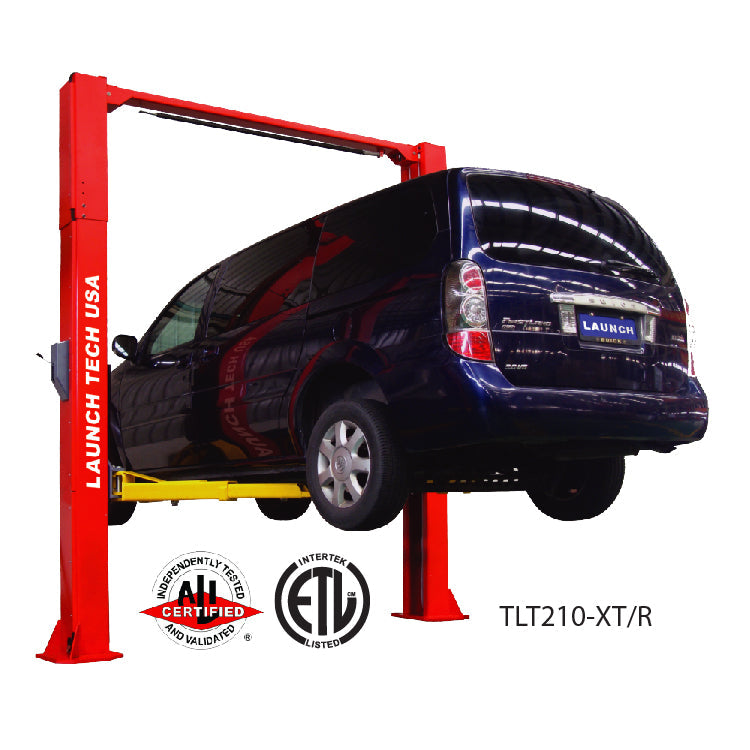

LAUNCH TLT-210XT TWO POST HOIST
Upgrade your garage with the versatile Launch 2 Post Lift. This ALI Certified lift offers a 10,000 lbs capacity and a range of convenient features.
Why You’ll Love It
- Height and width adjustable for versatility
- Heavy-duty arm restraint system for safety
- Direct drive for efficient operation
- Rubber door guards and outer hose guards for protection
- Single point lock release for ease of use
- Available in two colors: Blue & Red
FAQ
What is the maximum lifting height of the Launch 2 Post Lift?
The maximum lifting height is 73" (1854mm) without adapters.
Is the Launch 2 Post Lift ALI Certified?
Yes, it is ALI Certified for safety and quality.
What is the motor voltage of the Launch 2 Post Lift?
The motor operates at 208-230 Volt/60hz/Single Phase.
The TLT210-XT Launch 2 Post Lift is a multi-purpose, full asymmetric lift that is height and width adjustable.
Available in two colors : Blue & Red
Features
- ALI Certified
- 10,000 lbs Capacity
- Direct Drive
- Rubber Door Guards
- Outer Hose Guards
- Single Point Lock Release
- Heavy-Duty Arm Restraint System
- Double Telescoping Screw Pads
- Adjustable Column Height
- Adjustable Column Width
- Standard or Rotated Asymmetric Columns
- Stackable Foot Pad Extensions
- 3 Stage Front Arms
- Available in Red or Blue
Specifications
- Maximum Lifting Height: 73” (1854mm)
(Without Adapters) - Minimum Column Height: 143”(3634mm)
- Cylinder Full Height: 145.2” (3688mm)
- Total Width: 136.6” (3470mm) Symmetric
137.9” (3502mm) Asymmetric - Drive-Thru Clearance:
98.4” (2500mm) Symmetric
88” (2235mm) Asymmetric - Floor to Overhead Switch: 140” (3556mm)
- Front Arm Reach (min / max):
23.6” (600mm) / 43.5” (1105mm) - Rear Arm Reach (min / max):
38.6” (980mm) / 61.8” (1570mm) - Screw Pad Height:
4” (101mm) to 7.5” (190mm) - Inside Column Width:
110.2” (2800mm) / 101.9” (2588mm) - Motor: 2 HP
- Voltage: 208 - 230 Volt/60hz./Single Phase
- Rise Speed: 54 seconds
- Max. Load per Arm: 2500 lbs (1134 Kilos)
- Ceiling Height Required: 143.5” (3644mm)
- Narrow Bay Setting: Deduct 5.9” (149mm)
- Maximum Column Height: 149” (3874mm)
- Shipping Weight: 1,570 lbs. (794 kg)
- Ship Dimensions: 110”L x 24”W X 48”H
