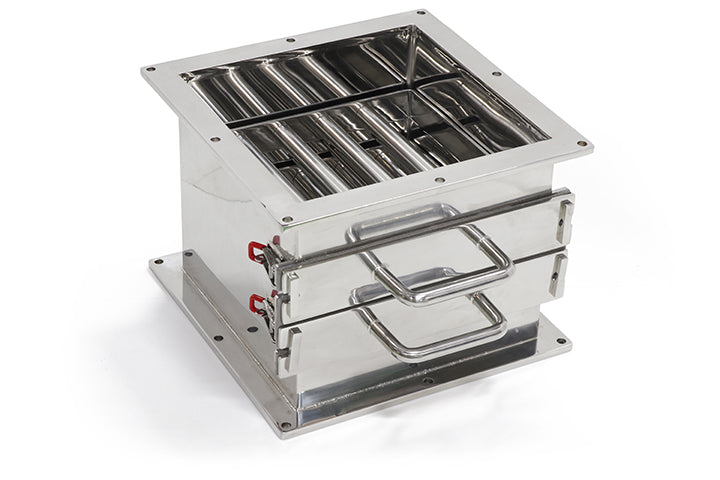

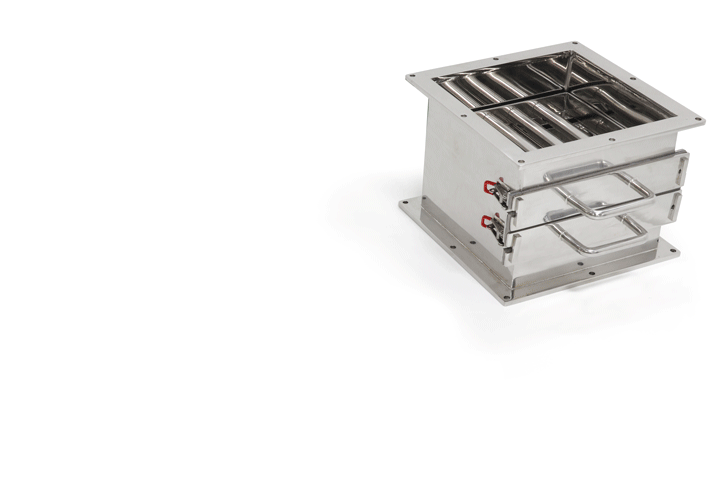

Magnetic filter pull-out type L305mm x W308mm x H270mm (Double)
Upgrade your filtration system with our Magnetic Filter Pull-Out. Designed to effortlessly remove magnetic substances, this filter ensures efficient iron powder removal for a cleaner production line.
Why You’ll Love It
- Super strong neodymium magnet for effective filtration
- Prevents iron powder from mixing with food and other materials
- Customizable shapes and sizes available for your specific needs
- Easy installation and maintenance for hassle-free use
FAQ
How does the Magnetic Filter Pull-Out work?
The Magnetic Filter Pull-Out uses a super strong neodymium magnet to attract and remove magnetic substances such as iron powder.
Can I customize the shape and size of the filter?
Yes, we offer customizable shapes and sizes for special orders to fit your production line's requirements.
Is installation difficult?
No, installation is easy and maintenance is hassle-free, making it a convenient addition to your filtration system.
Magnet Bar is a super strong bar magnet with a neodymium magnet built into a stainless steel case. It prevents iron powder from mixing with food, tea leaves, and other materials. By combining multiple bars into a filter-like structure, magnetic substances can be removed more effectively. Powerful and effective iron powder removal is possible by installing at the inlet and outlet of ducts on the production line. Select a square or circular type according to the duct shape and installation interval of your production line. Non-standard shapes and sizes can be manufactured by special order.
| name | Product Specifications | SI | CGS |
|---|---|---|---|
| shape | |||
| Long | L | 305 mm | 30.5 cm |
| Long | l | 370 mm | 37 cm |
| width | W | 308 mm | 30.8 cm |
| width | w | 370 mm | 37 cm |
| High | H | 270 mm | 27 cm |
| Thickness | T | 10 mm | 1 cm |
| number | Q | 9 | |
| Magnetization Direction | M | Axial direction | |
| surface treatment | Polish | - μm | - |
| Magnetic properties | |||
| Surface magnetic flux density | B | 1400mT | 14000 Gauss |
| Maximum operating temperature | Tw | 100 °C | 212 °F |
| Material property | |||
| Material symbol | Magnetic filter pull-out type | 316 | |
| density | ρ | 7.85 kg/m3 | - |
| weight | Net | 32.5 kg | 32500 g |
| remarks | |||
| REACH RoHS Directive | |||
