Lamilux Flat Roof Exit Comfort Swing
Easily access your roof with the Motorized Roof Exit Hatch Comfort Swing by Lamilux. This innovative solution combines functionality and efficiency for seamless operation.
Why You’ll Love It
- Effortlessly opens outward for easy roof access
- Preassembled for quick and easy installation
- Motorized operation with emergency stop feature for safety
- Thermally efficient design minimizes heat loss
FAQ
Is installation complicated?
No, the unit comes preassembled for plug and play installation.
Can it be operated remotely?
Yes, it can be operated from the exterior via an added control.
Is the glazing easy to maintain?
Yes, the self-cleaning glass ensures easy maintenance.

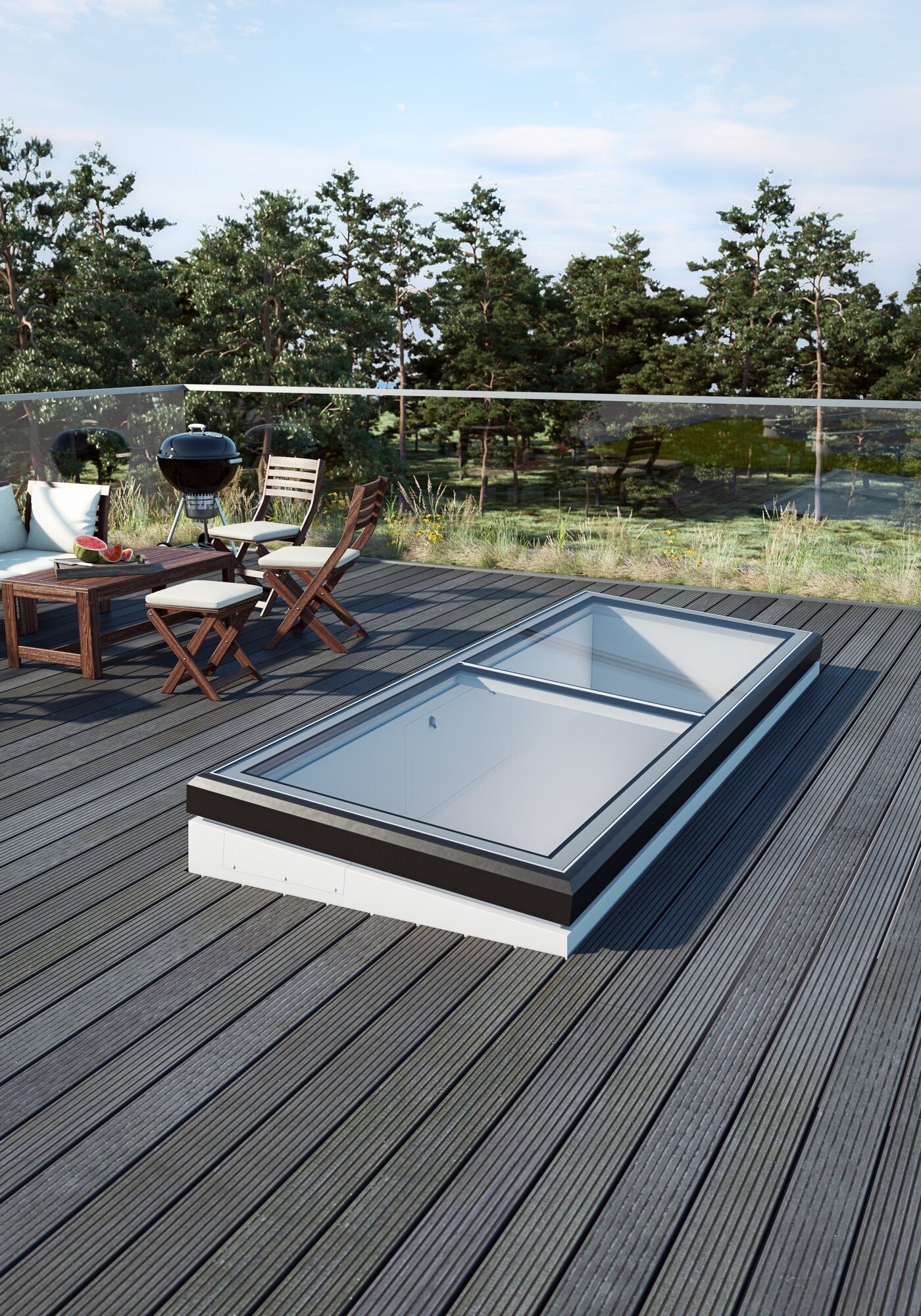

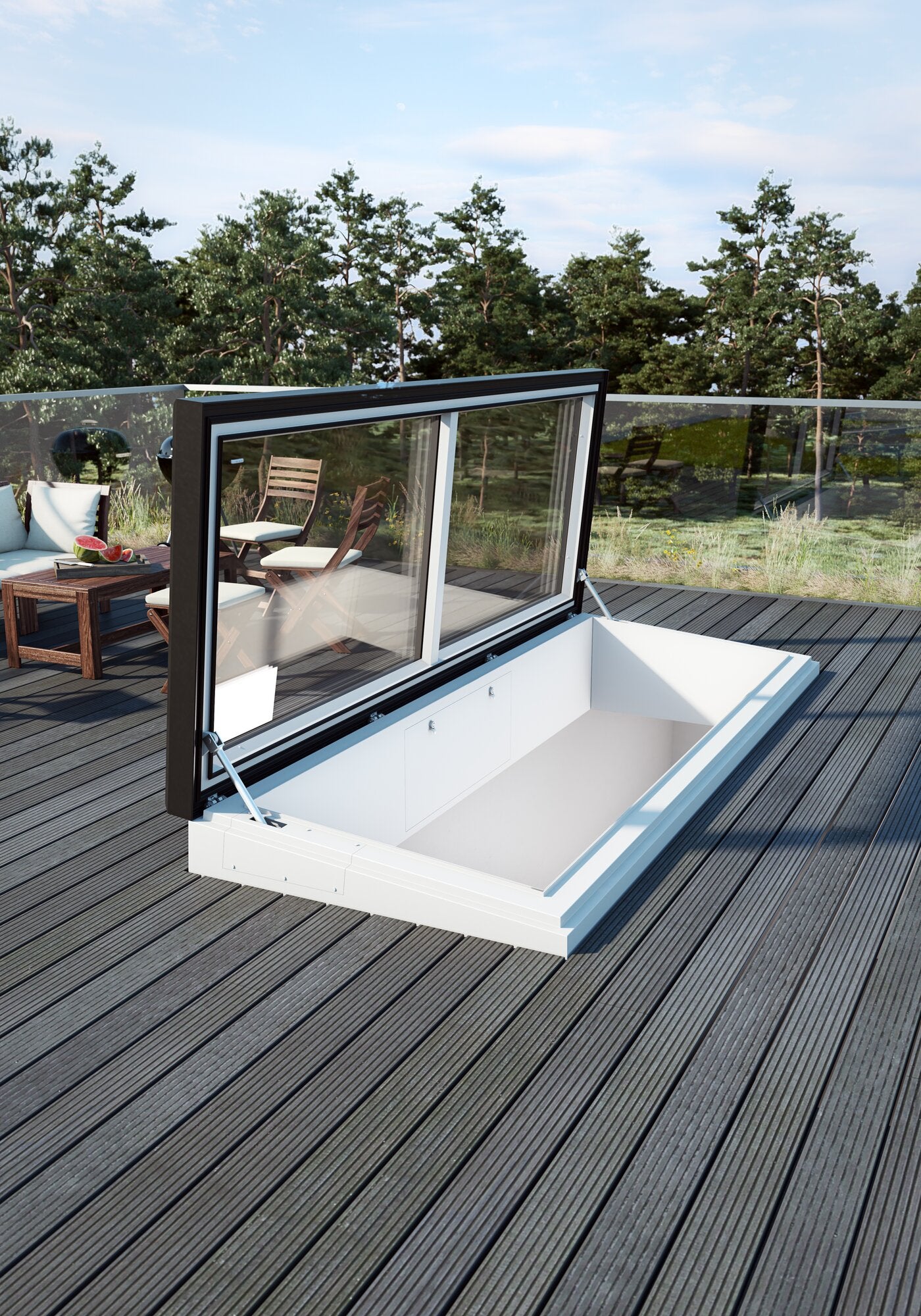

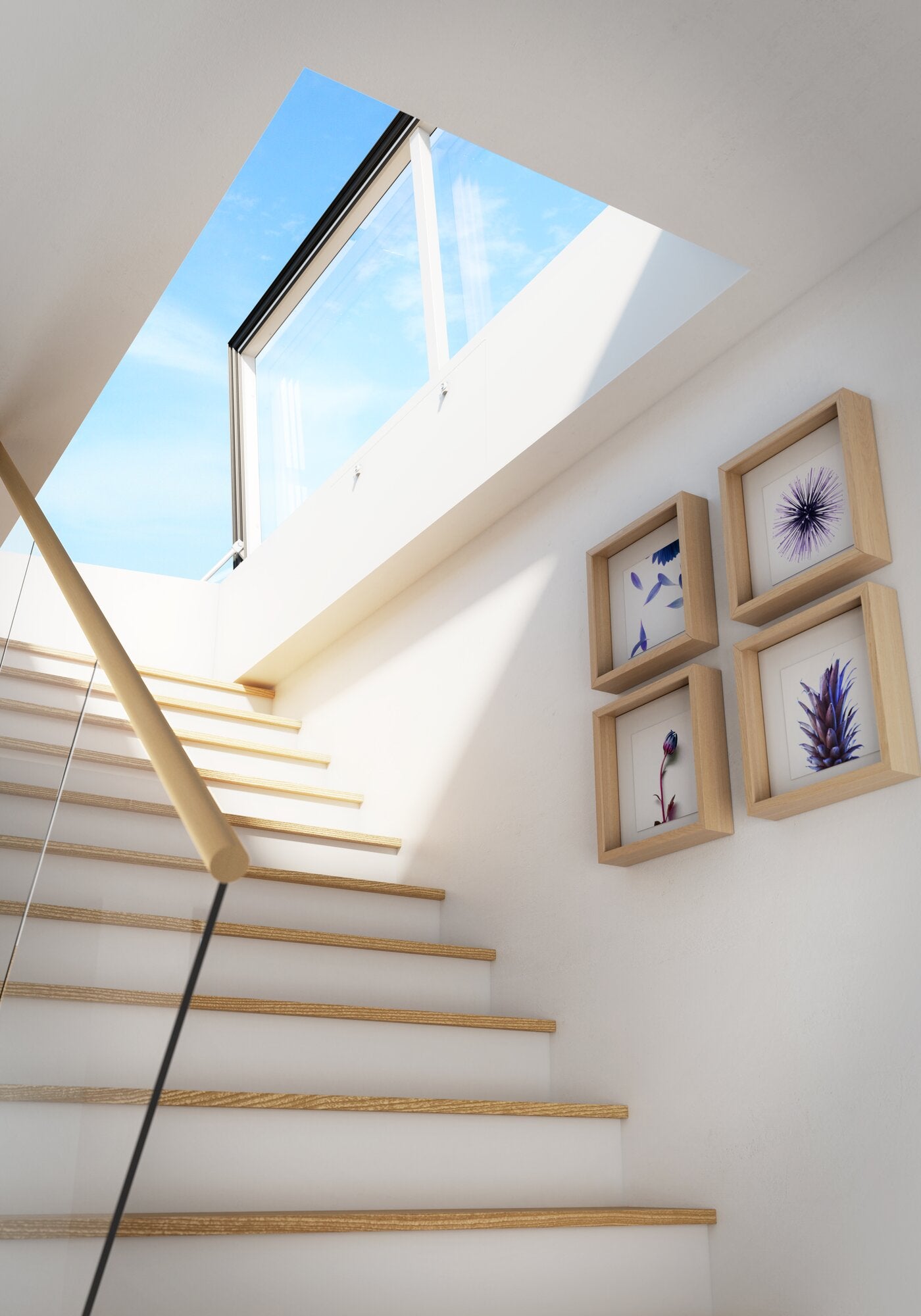

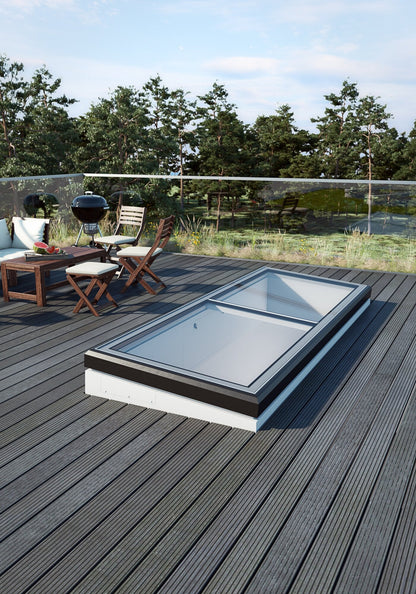

The Lamilux Comfort Swing is a motorized roof exit hatch with an operable sash that opens outward via a hinged edge and two motorized pistons. Ideally suited for stairway access to roofs. This roof access skylight has a thermally continuous assembly with insulated glazing and a continuously insulated frame, which is prefabricated on an insulated curb with an integrated 5° slope.
Specifications:
- Preassembled for plug and play installation: skylight, motor opener, and upstand

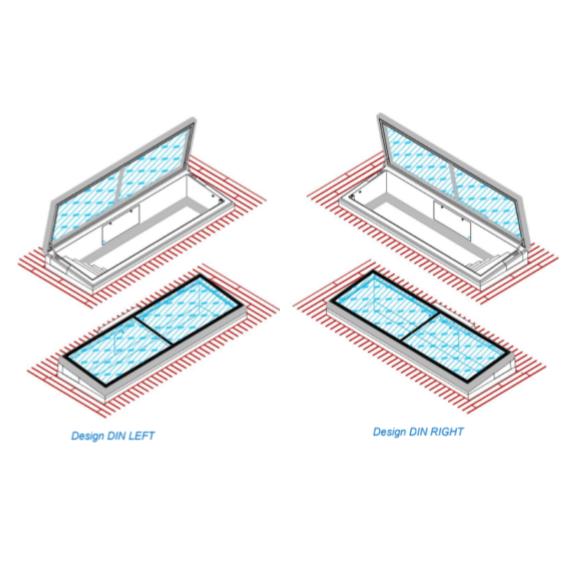

- Space-saving swing opening requires minimal footprint
- Motorized operation with visual sensor to trigger emergency stop
- Operable from the exterior via an added control
- Insulated fiberglass curb makes thermal bridge free installation simple, fast and reliable, minimizing heat loss
- Thermo active design engineered solution from Germany to raise surface temperature and prevent condensation on interior of unit
- RAL powder coating of skylight frames in color of your choice
Glazing Details:
- Glass: tempered exterior, laminated safety glass interior
- Self-cleaning thanks to sloped glazing at 5°
- Uglass: 0.105 BTU/hr.ft².°F (0.6 W/m².K) per EN 673
- SHGC: 0.24-0.30
- Visual Transmittance: 0.47-0.55
