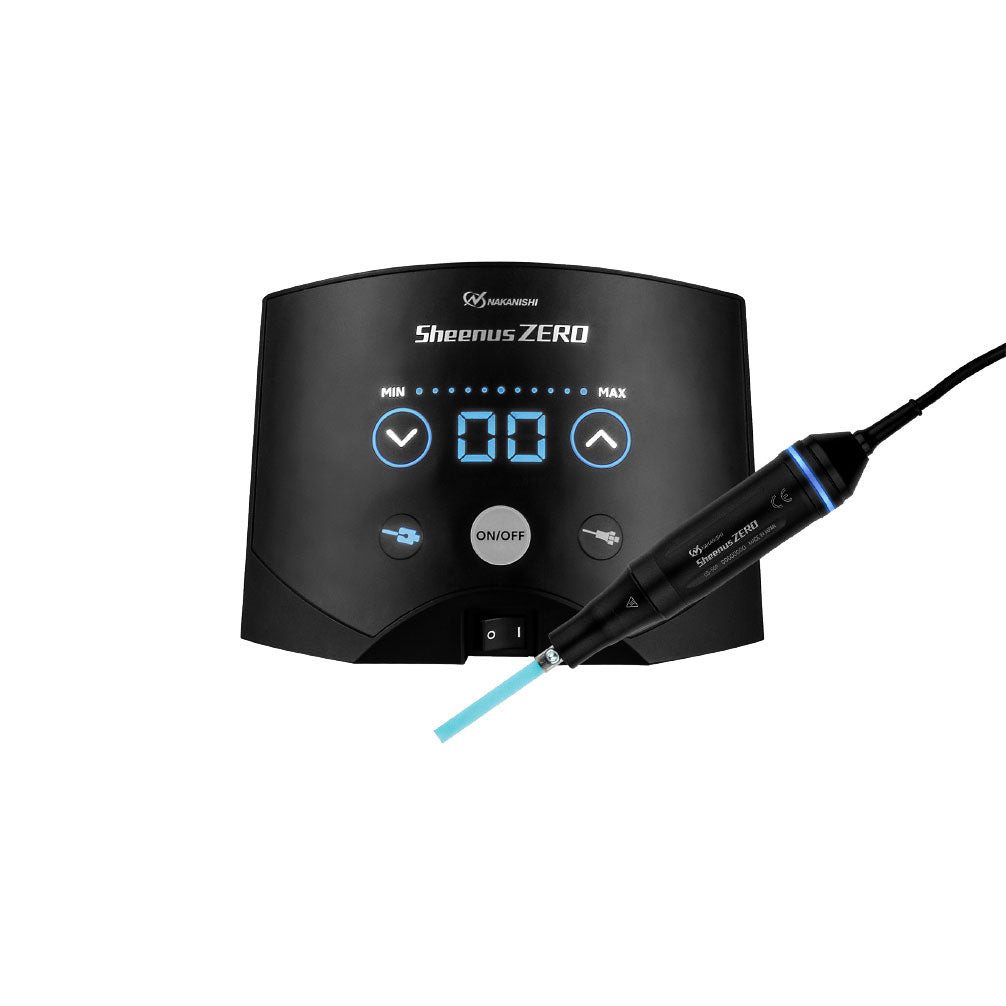

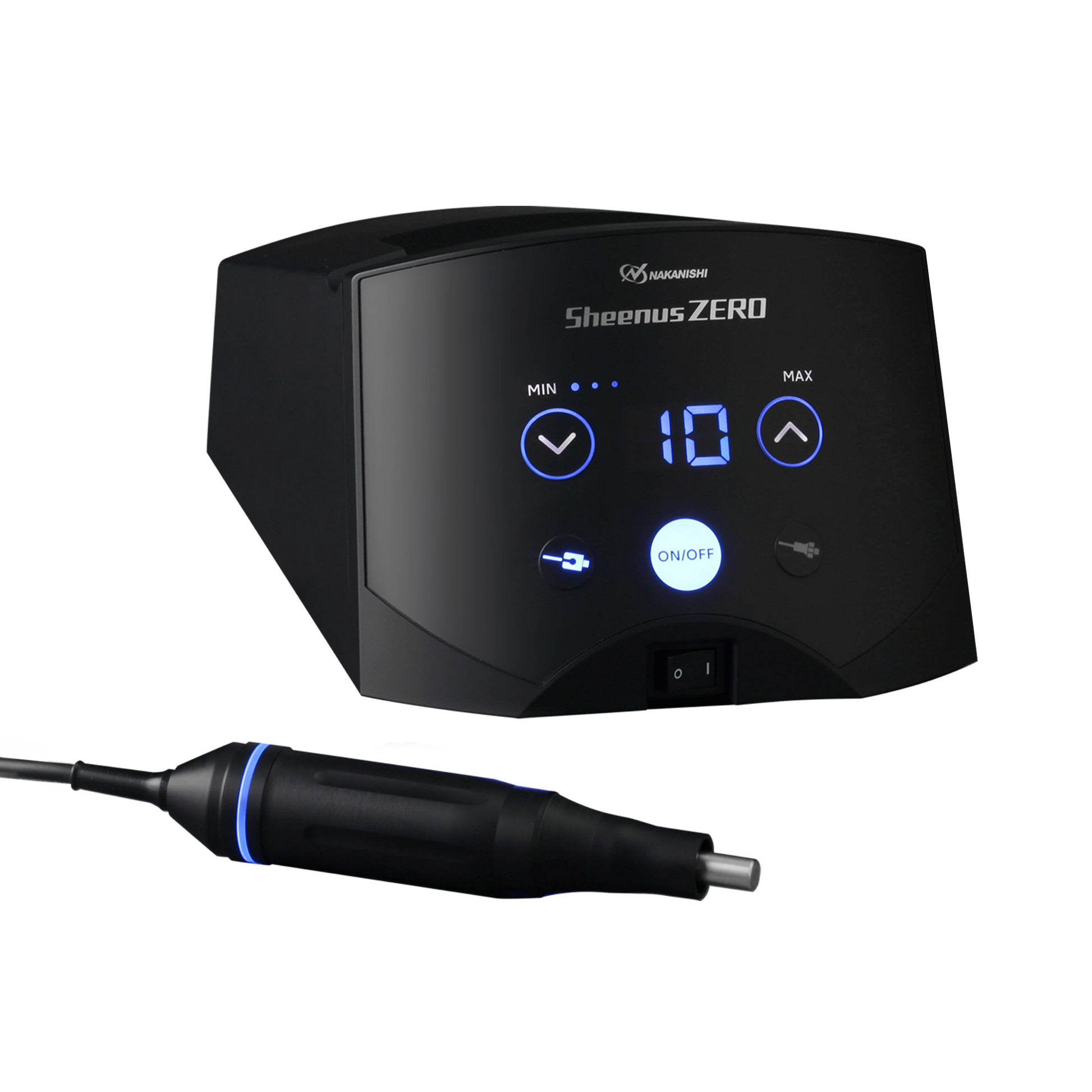

Sheenus ZERO
The Sheenus ZERO precision grinding tool is a versatile solution for achieving impeccable finishes on a variety of materials. From aluminum dies to cemented carbide dies, this tool excels in precision grinding for molds and dies.
Why You’ll Love It
- Effortlessly removes hard layers of EDM deposits
- Polishes intricate corners and ribs with ease
- Ideal for plastic molds, press, casting, forging, trimming, and header dies
- Suitable for bur removal, grinding, and polishing of precision molds, dies, electronic, and ceramic components
FAQ
What materials can the Sheenus ZERO be used on?
The Sheenus ZERO can be used on a wide range of materials including aluminum dies, cemented carbide dies, plastic molds, and more.
What power source does the Sheenus ZERO require?
The Sheenus ZERO operates on AC120V/240V, 50-60Hz power source.
What are the main features of the Sheenus ZERO?
Some key features include the ability to remove hard layers of EDM deposits, polish difficult areas, and perform bur removal, grinding, and polishing tasks on precision molds and dies.
The Sheenus ZERO can be used for grinding, polishing and mirror finishing on a wide range of materials from aluminum dies to cemented carbide dies. It is also perfect for plastic molds, press, casting, forging, trimming and header dies.
This tool quickly removes hard layers of EDM deposits and polishes difficult areas such as complex corners and ribs.
Capabilities include bur removal, grinding and polishing of precision molds, dies electronic and ceramic components.
Features:
| UNIT MODEL | NE330 120V |
|---|---|
| Power Source | AC120V/240V, 50-60Hz |
| Power consumption | 100VA |
| Dimensions | W6.34″ x D10.08″ x H3.31″ |
| Oscillation Frequency | 19 KHz - 29 KHZ |
| Power Conditioning | Continuous variable type |
| Frequency Control | Auto-tracking type |
| Output Power | UNCLAMP mode Max. 45W, CLAMP mode Max. 20W |
| Weight | 3 lb. 5 oz. |
| HANDPIECE MODEL | US-50P |
|---|---|
| Oscillator | PZT piezoelectric type |
| Attachment fixing | M6 screw |
| Cable Length | 6 ft |
| Dimensions | ø0.63″ (Max ø1.10″) x L5.28″ |
| Weight | 5.29 oz. (excluding cable) |
